Modular Flatpack container house office

Item No.: yagocontaineroffice
YAGO container house is a kind of modular house, consisting of light steel frame and thermal insulation sandwich panel.
Description

YAGO container house is a kind of modular house, consisting of light steel frame and thermal insulation sandwich panel, Advantage :
A. Easy & Fast installation
B. Strong and durable frame
C. Easy to disassemble and transfer to another site
D. Modular design, could combine free for different modular.

1. System Advantage:

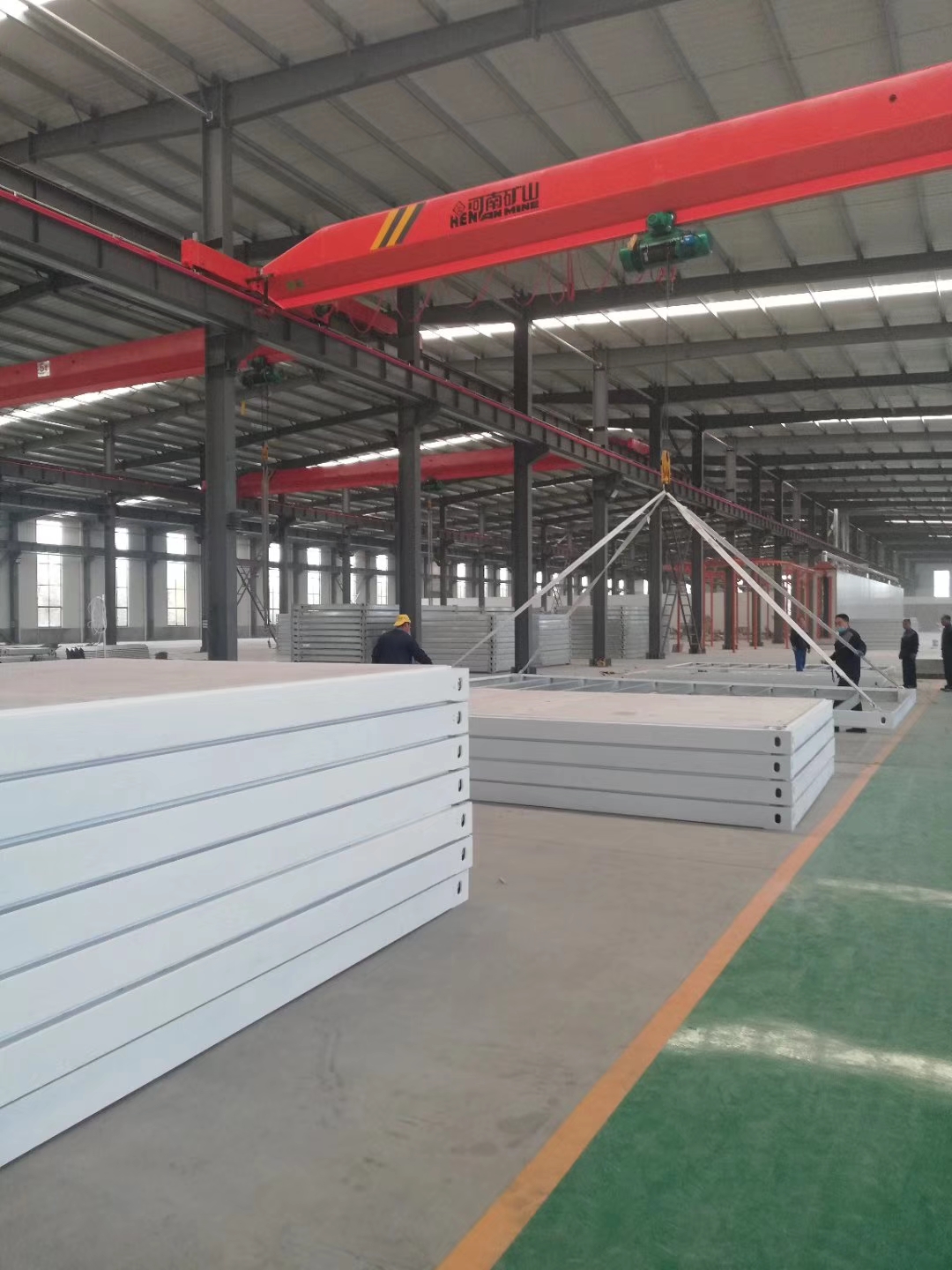

We just improved our production line, our system is the leading system in China now, the key points as following:

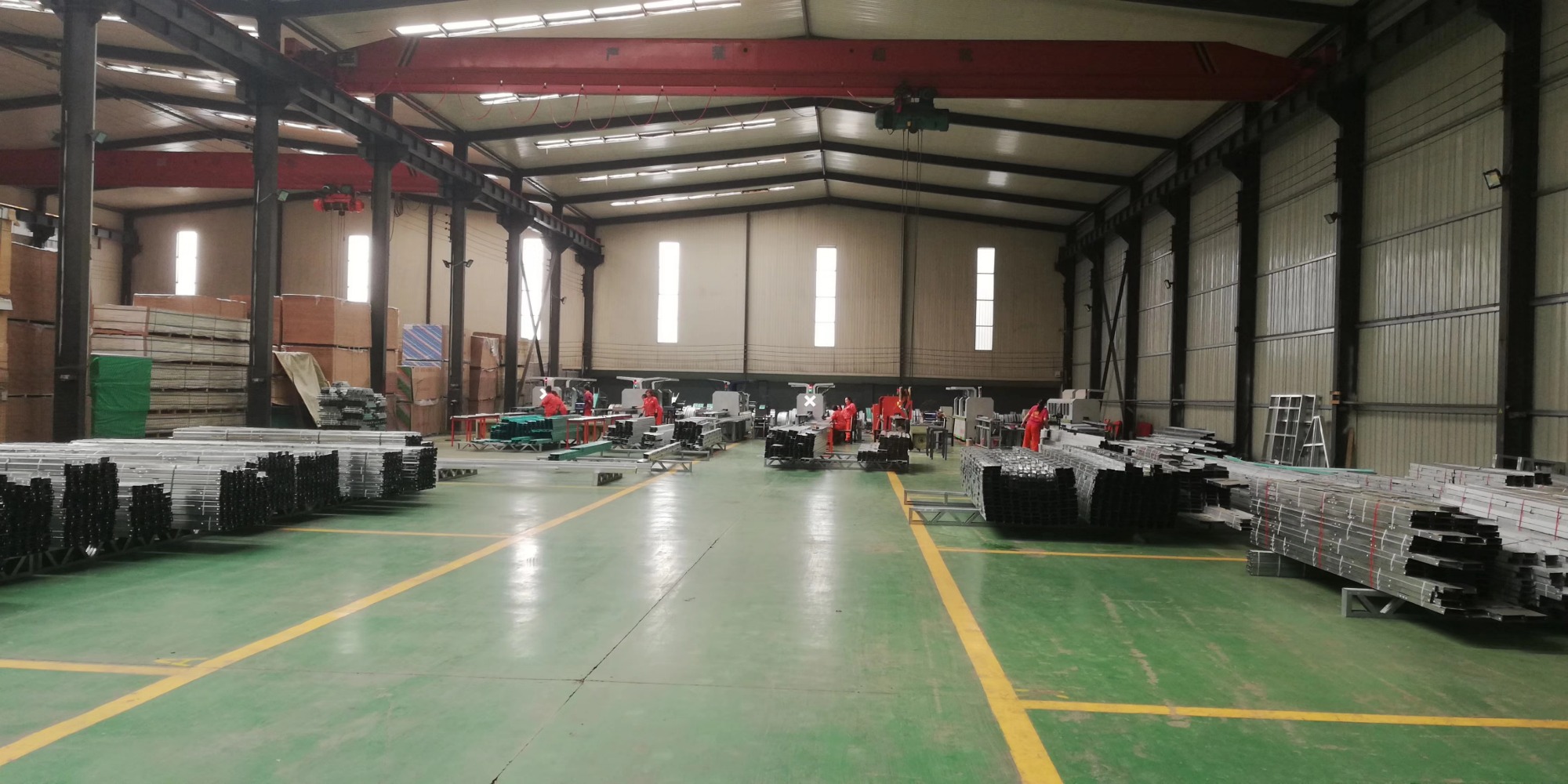

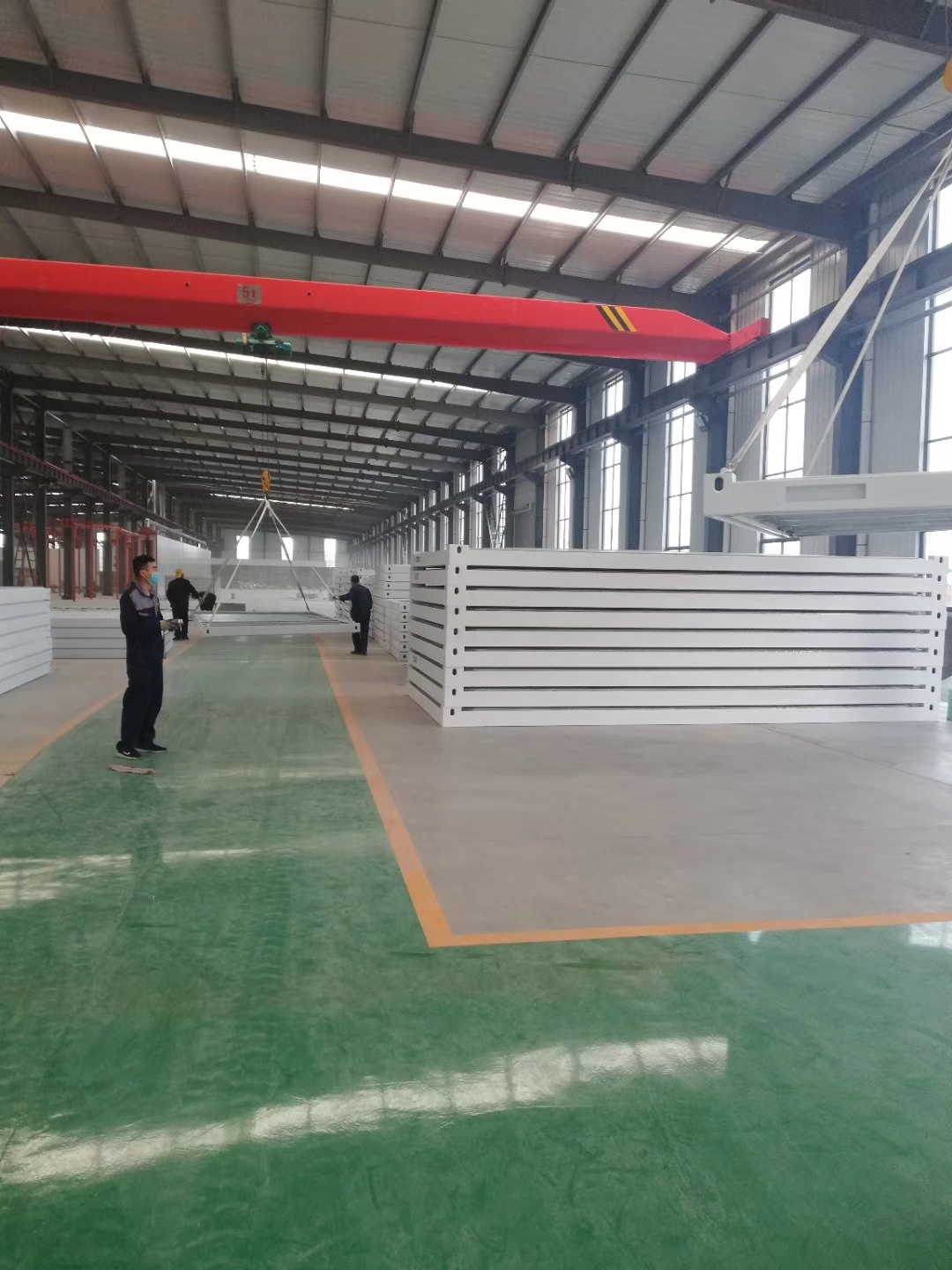

1. Fully auto-matic Machine line to make all the fabrication finish with high standard.

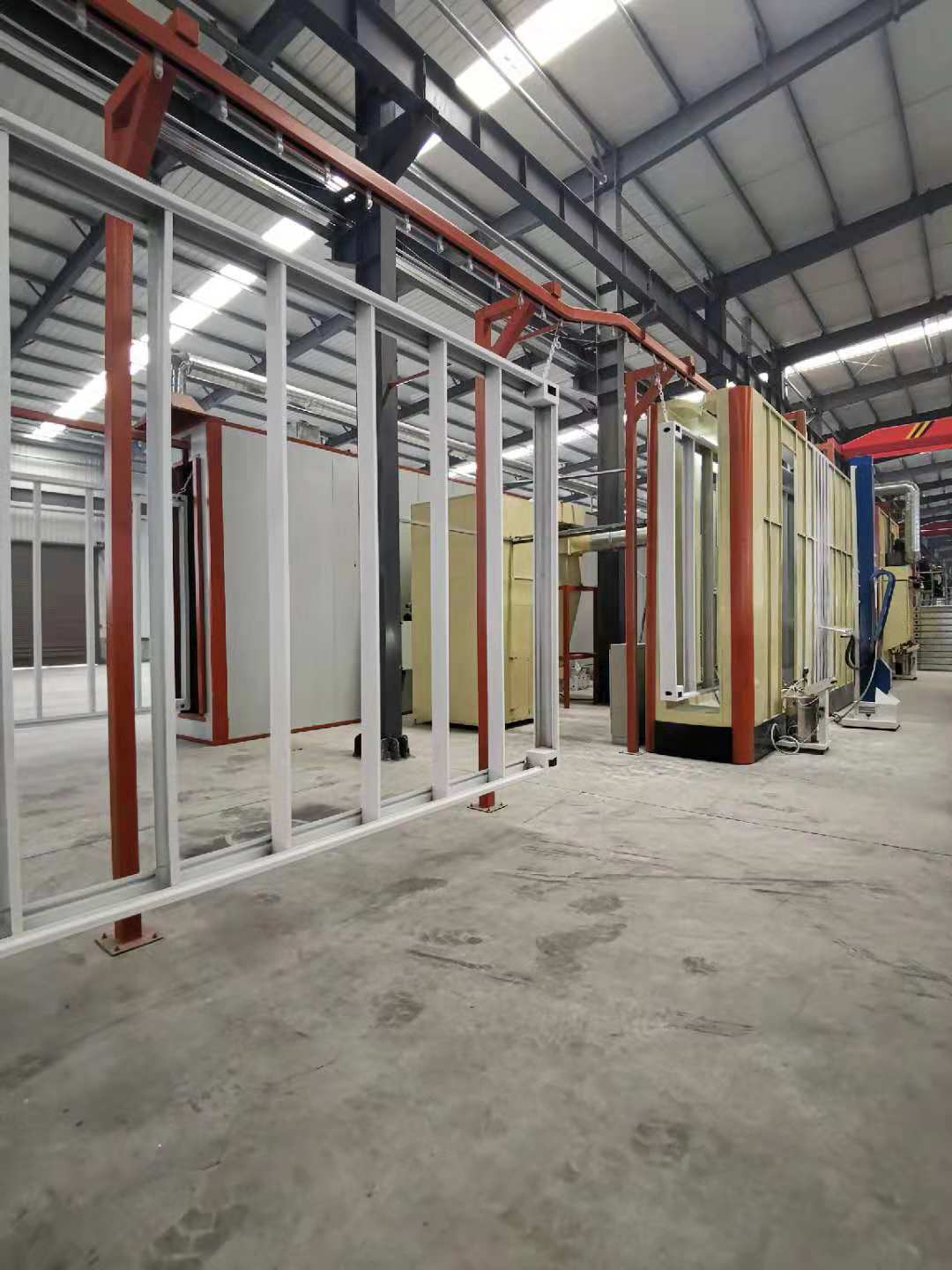

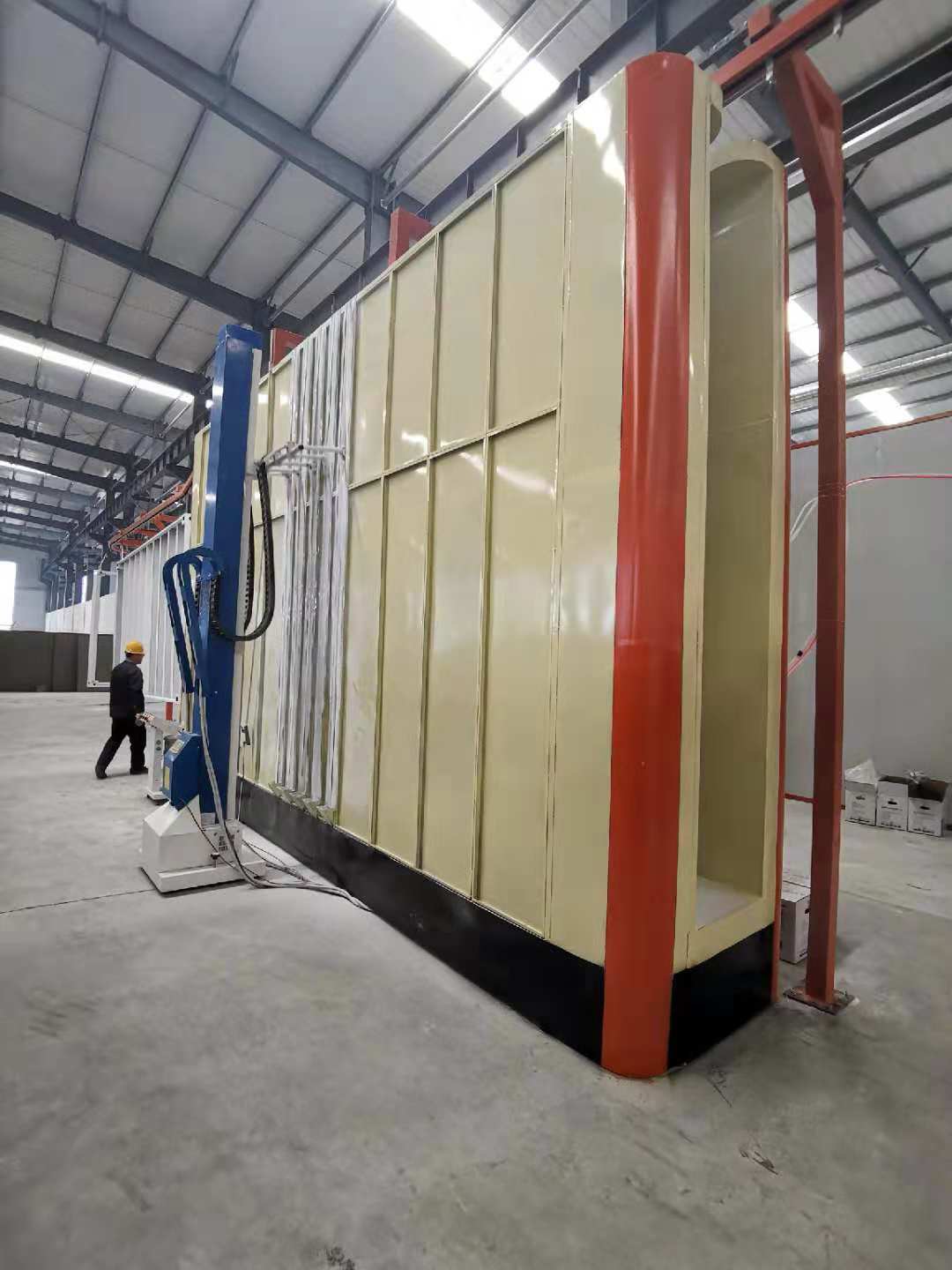

2. Painting is Auto-matic machine powder coated painting line, which make the painting in high quality and much more durable.
3. Overall higher for our container is 2.896m , inner ceiling height is 2.6m. Inner space is more comfortable for living and working.
4. Strong top frame and down frame. Top beam and down beam and columns with galvanization thickness≥80g/m2, then Painting is Auto-matic machine powder coated painting, white color.
5. Door is high quality insulated steel door, not Sandwich panel door.
6. Floor support is 18mm fiber cement board, not 18mm plywood. And floor finish is 2mm floor leather.
7. Window is PVC wind with double glass,  with screen and security bar
8. Full electrical system for lighting Socket, AC and water heater line. 2.5mm2 for lighting and common socket line. 4mm2 cable for AC and water heater line. Power distribution cabinet with 8 circuit, with air-break switch, leakage protector (Main power supply cable 6m2).
9. Wall panel is 75mm Sandwich panel with fire rated fiber glass insulation. pre-paited Alu-Zinc Sheet on both sides is 0.4mm.

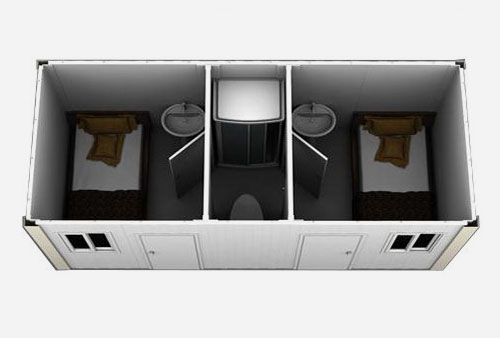

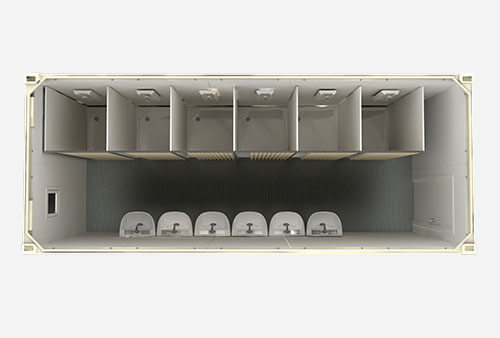

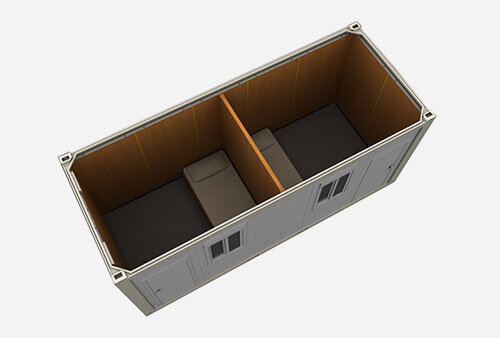

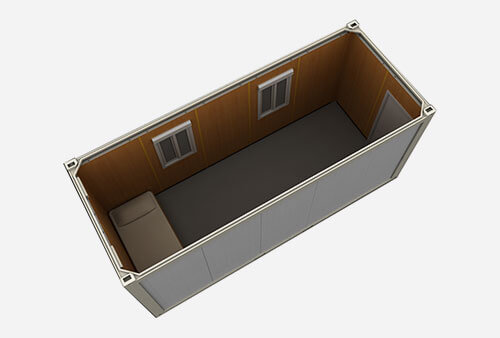

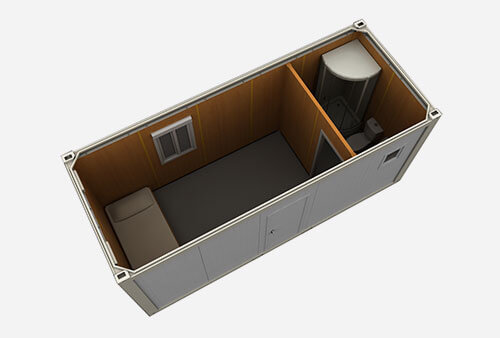

2. Standard design:
